合波器

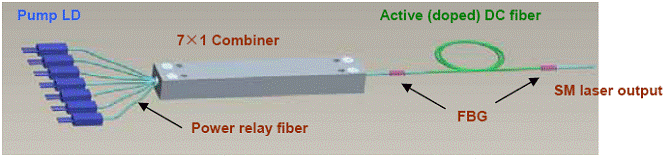

N×1 泵浦合波器 1.简述： 泵浦合波器是一款无源器件，是基于fused biconical taper (FBT)技术，广泛应用于光纤激光、 光纤放大器、高功率EDFA、生物和传感系统的产品。 上海康纤提供的合波器基于先进的理论和高超的生产技术，可以给客户提供高品质，低价位的产品和服务。 2应用 Combiner Type Operating wavelength (nm) Input pump fiber Output fiber Pump Efficiency (Min) 3×1 and 4×1 800~1000 105/125 0.15 or 0.22 200/220 0.22 93% 3×1 and 4×1 800~1000 105/125 0.15 or 0.22 125 0.46 93% 6×1 800~1000 105/125 0.15 10/125 0.08/0.46 90% 6×1 800~1000 105/125 0.15 20/125 0.08/0.46 90% 6×1 800~1000 105/125 0.22 20/400 0.06/0.46 90% 6×1 800~1000 200/220 0.22 20/400 0.06/0.46 90% 7×1 800~1000 105/125 0.15 230/250 0.22 90% 7×1 800~1000 230/250 0.22 20/400 0.06/0.46 80% 7×1 800~1000 105/125 0.15 125 0.46 90% 7×1 800~1000 105/125 0.22 200 0.46 90% 7×1 800~1000 105/125 0.22 400/430 0.22 90% 7×1 800~1000 105/125 0.22 20/400 0.06/0.46 90% 19×1 800~1000 105/125 0.15 400/440 0.22 90% 19×1 800~1000 105/125 0.15 x/200 DCF 90% 19×1 800~1000 105/125 0.22 x/400 DCF 90% 4. 其他合波器系列 Configuration Type Wavelength (nm) Description N×1 RGB combiner Visible Range Special fiber for short wavelength. 0.22NA series 800~1100 Pump fiber and output fiber are all 0.22NA fiber. Such as 105/125, 200/220, 300/330, 400/440, 600/660 etc. N×1 assembled with (N+1)×1 7×1 with (6+1)×1 800~1100 Multi-class combiner assembly.
Contact us by e-mail for more details.
